Automatic Paper Lid Machine

Automatic Paper Lid Machine

PPD-APLM700

Automatic paper lid machine is an automated equipment specifically designed for high-speed, precision die-cutting paper lids which will be covered on aluminium foil containers.
The core function of automatic paper lid machine is to take pre rolled composite material and, through die cutting in a single process, resulting in the finished paper lid sheets, and automatically separating and collection of the waste materials.

Features:
1.Suitable material:250gsm to 550gsm Aluminium Foil Laminated Paper,max width 700mm
2.Auto Braking system in error/malfunctioning
3.Automatic waste collection system.
4.High speed production: 10,000-12,000 lids per hour.

Main Data:

Name:Automatic Paper Lid Machine

Model:PPD-APLM700

Suitable raw material 250-550gsm aluminium foil laminated paper

Paper lid size:204x134mm,4 lids per row.

Raw material roll width:max 700mm

Raw material roll ID:76mm

Raw material roll OD:max1000mm

Speed:10000-12000 lids per hour

Voltage:220/380/415V,3PH,50Hz

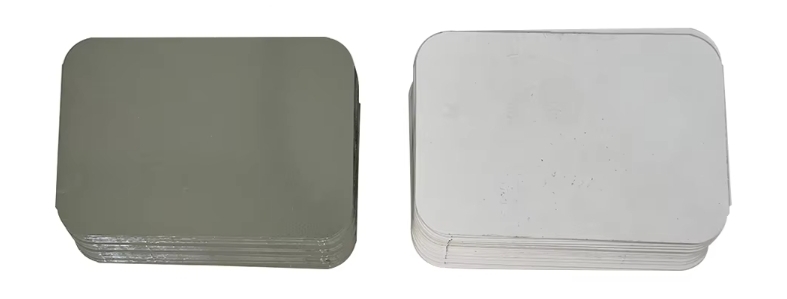

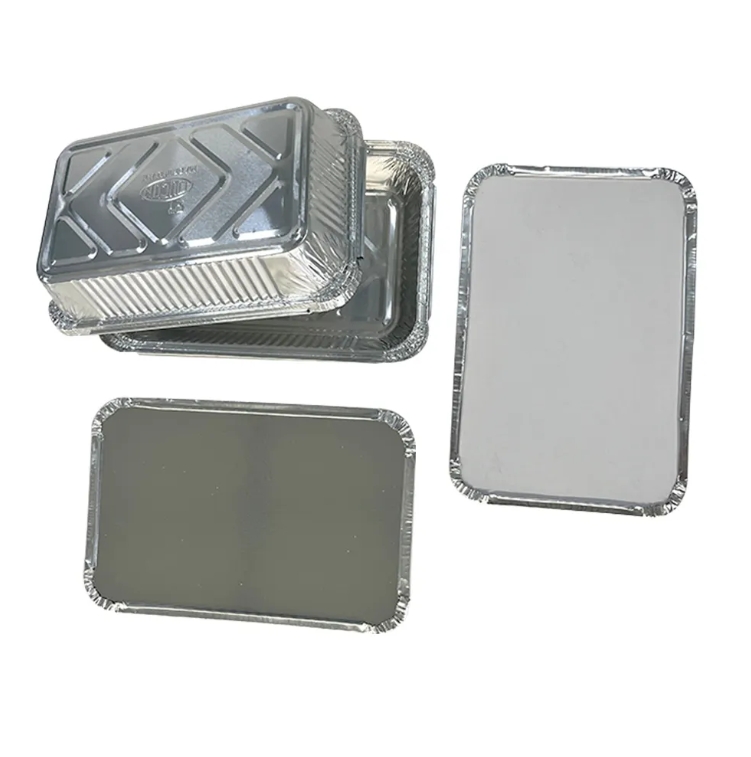

Aluminium Foil Paper Lid.jpgPaper Lid.jpg
