Stretch Film Slitting Machine

Grafting Film Cutting Machine

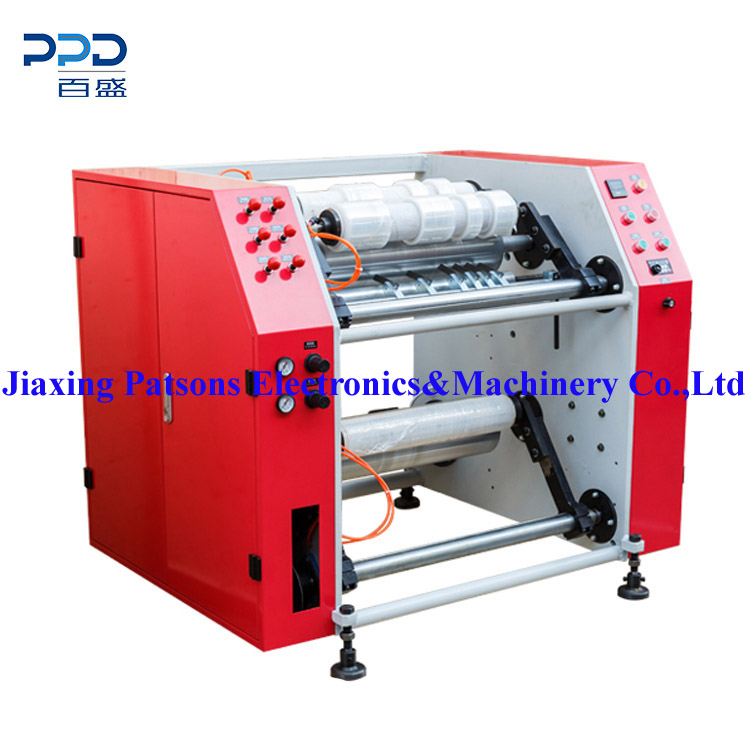

Grafting Film Cutting Machine

PPD-GFS500

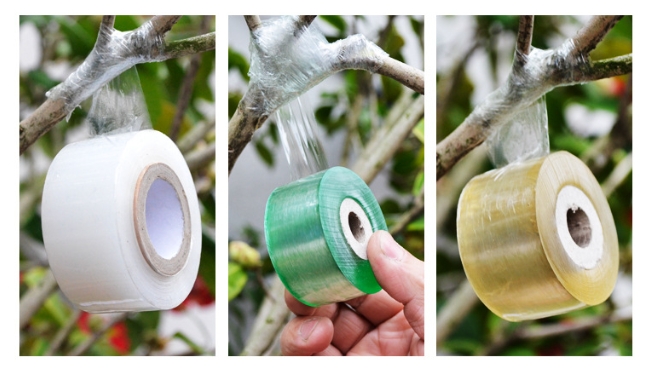

Grafting film slitting machine is mainly used for rewinding and slitting plastic films such as grafting film, PE winding film, PE/PVC preservation film, PVC protective film, etc.
It can rewind the big roll diameter film into some same and small roll diameter films or silt that into small but different roll diameter films. In addition, this machine can improve the appearance smoothness of roll.
This machine is easy to operate and safe, making the winding material smoother and stronger.

Features:
1.This rewinding machine adopts frequency converting control and has high revolving speed.
2.Adjustable cutting width for easy manual control.

Technical parameters:

Name: Grafting Film Cutting Machine

Model: PPD-GFS500

Master roll width:max500mm

Master roll ID:76mm

Master roll OD:max450mm

Finished product width:50-500mm option

Finished product ID:1.5/2/3inch option

Finished product OD:max180mm

Speed:max600m/min

Motor power: 2.2kw

Voltage:220/380/415V,50Hz option
