Stretch Film Rewinding Machine

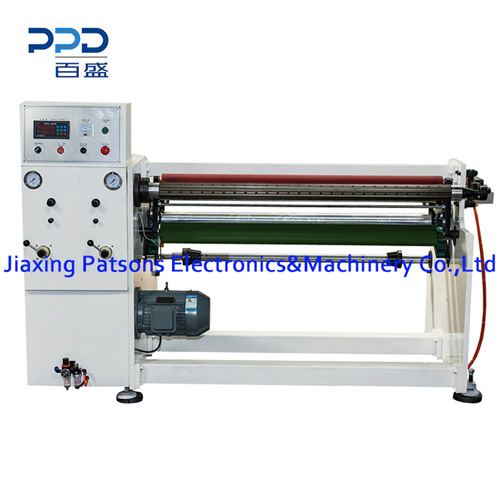

Single Shaft Tape Rewinder

Single Shaft Tape Rewinder

PPD-TR500

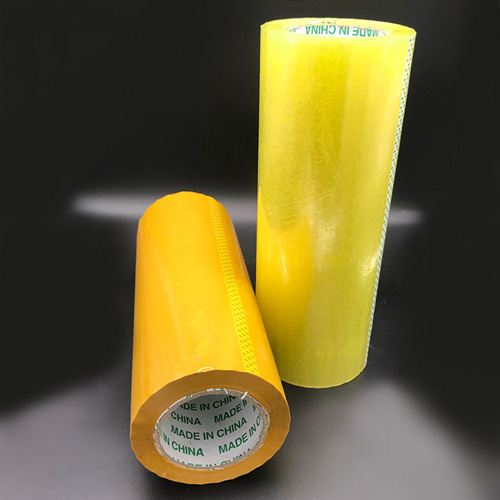

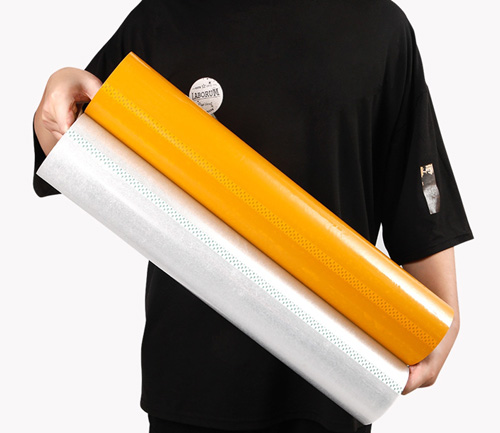

Single shaft tape rewinder is suitable for rewinind many kinds of tapes,like bopp tape,opp tape,carton tape,protective film etc from big jumbo roll to small diameter roll with same width.


Features:
1. The machine has a compact structure and is easy to operate.
2.Both unwinding and rewinding use air-expanding shafts, which are more stable.
3.Rewinding tension control: Magnetic power brake, automatic tension control system.
4.Rewinding press roller system:automatic pneumatic timble

Main Data:

Name:Single Shaft Tape Rewinder

Model:PPD-TR500

Shaft Width:500mm

Paper core diameter:76mm

Unwinding roll outer diameter:max600mm

Reewinding roll diameter:max350mm

Speed:0-100m/min

Voltage:380V,50hz
