Automatic Stretch Film Rewinder

Fully Auto Stretch Film Rewinder Production Line

Fully Auto Stretch Film Rewinder Production Line

PPD-ARW500-3L

Fully auto stretch film rewinder production line is our hot sale production line for stretch film rewinding.
This mode is suit for heavy duty rewinding of stretch film.

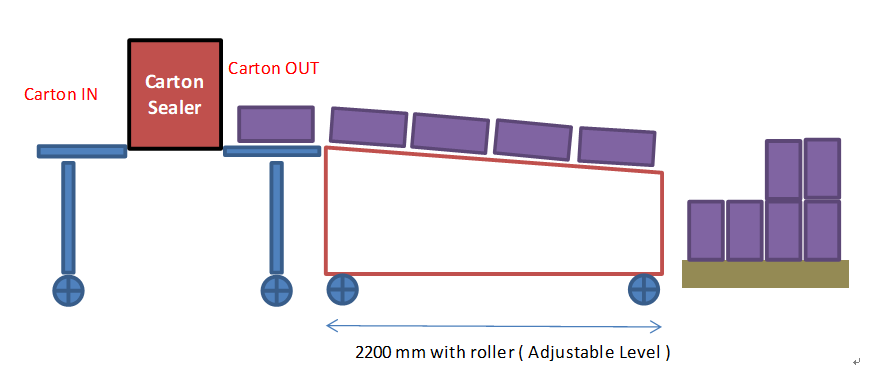

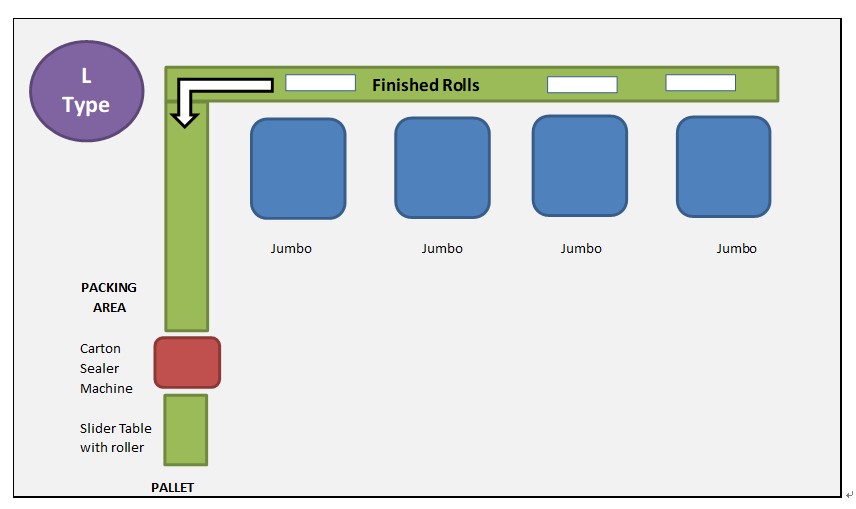

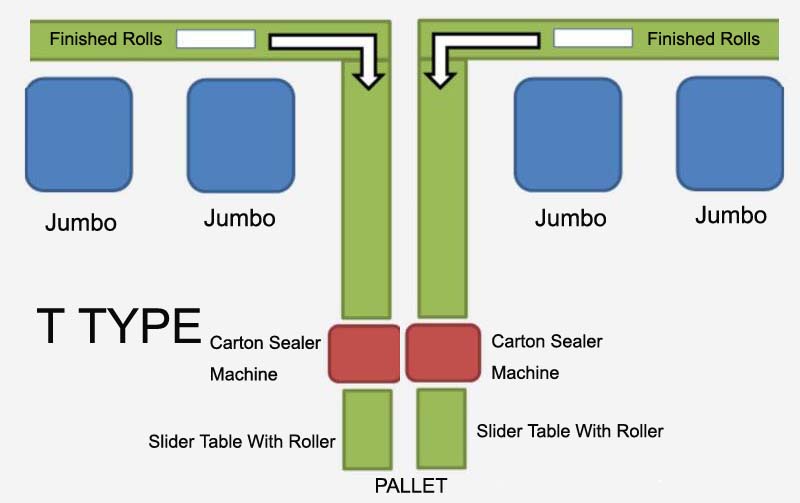

The production line can combine 3 units into a production line in the same time.And we provide different production type for customers choose,such as L type,T type.In both type of production line,at least 2,3 or 4 machines work with conveyor belt,slide down table and up down driving carton sealer together to rewind the jumbo rolls into small rolls and then pack the finished rolls into cartons.



Main Data:

Fully Auto Stretch Film Rewinder Production Line

Model:PPD-ARW500-3L

Jumbo roll width:500mm

Jumbo roll ID:3inch

Jumbo roll OD:500mm

Finished roll width:max500mm

Finished roll ID:1.5/2/3inch

Finished roll OD:180mm

Design speed:1200m/min

Power:3.7kw

Voltage:220/380/415V option

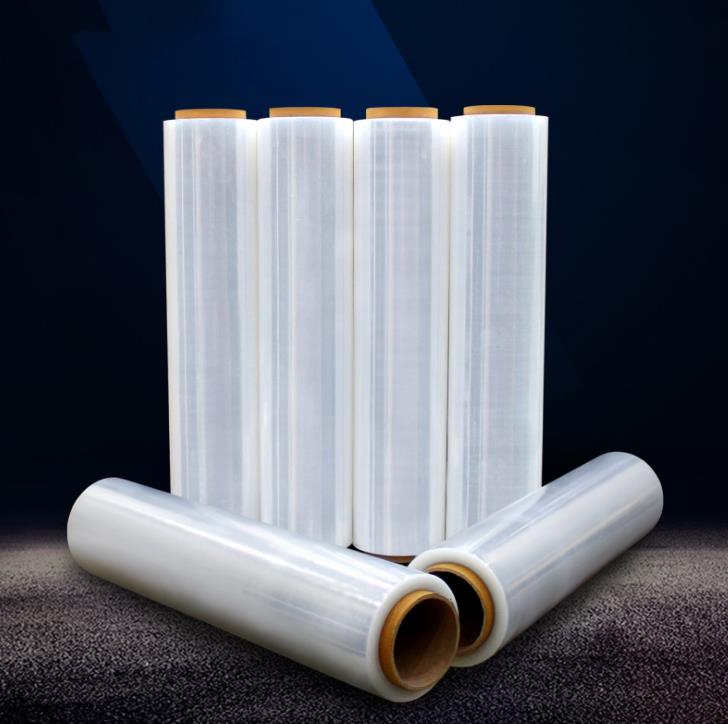

Stretch Film Roll.jpg
