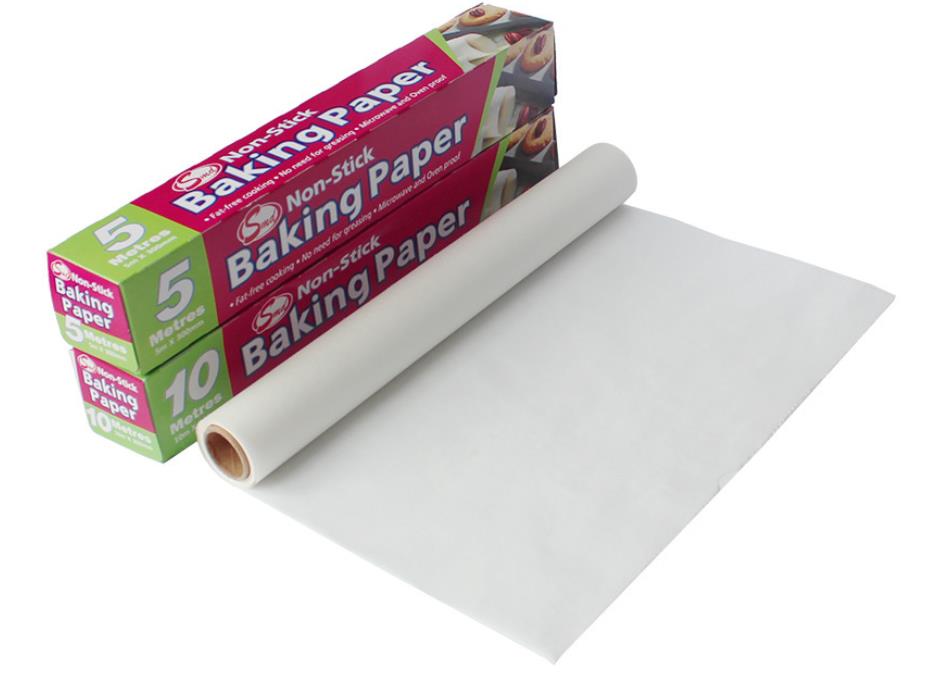

Single shaft silicon paper rewinder is a simple model to rewind silicon paper,baking paper,wax paper,PE coated paper,bakery paper etc.

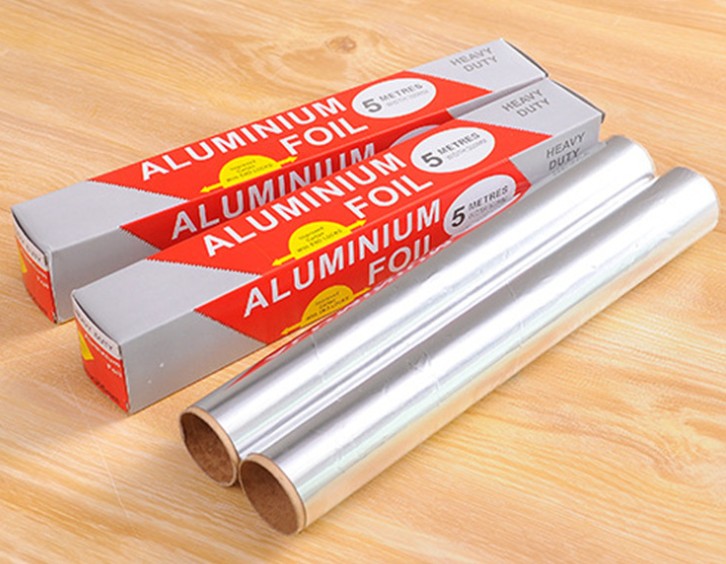

It is a multi-functional model,it also can rewind aluminium foil roll.
Features:
1.Flexible length setting, 1-300m manually adjust
2. The meter wheel runs synchronously, the metering is accurate,
3. No air pressure required
Main Data:
Name:Single Shaft Silicon Paper Rewinder
Model:PPD-SSPR300
Thickness of Raw Material:0.009-0.025mm
Width of jumbo roll:100-300mm option
Maximun diameter of jumbo roll:max450mm
Inner diamter of jumbo roll:76mm
Inner core of rewind roll:30/35/38mm option
Rewind roll length:1-300m
Production speed:2-5m/s
Voltage：220V
Magnetic powder brake:50N.M
Complete machine power：1.5KW
NOTE:Different sizes can be customized.
