Stretch Film Slitter Rewinder

New Model 2 Shaft PE Stretch Film Rewinder Slitter

New Model 2 Shaft PE Stretch Film Rewinder Slitter

PPD-NSFR600

New model 2 shaft PE stretch film rewinder slitter is our latest design of stretch film slitter rewinder.It is more convenient and flexible to adjust than traditional model.No need to take off the shaft,only open one side can get the final product roll.
Machine works with 2 exchange shaft to divide the large diameter film into several small rolls.

Features:

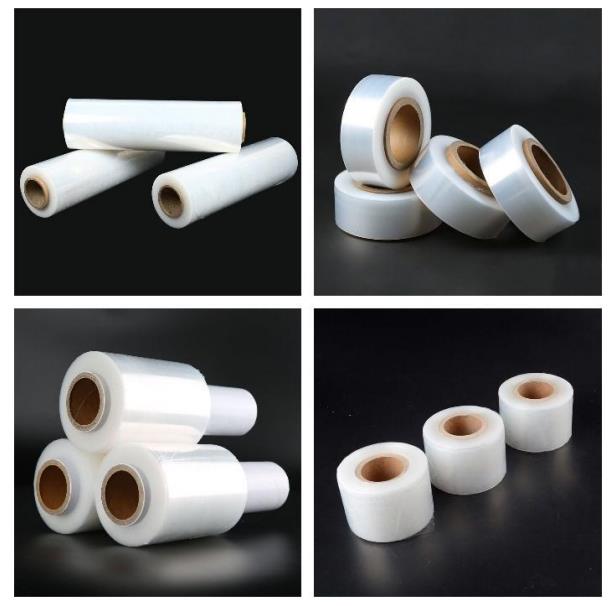

1.Suitable materials:PE stretch film,Industrial stretch film,pallet stretch film,LLDPE film,HDPE film,PE cling film rolls etc.
2.Different width can be set 25-600mm option,max width to jumbo roll.
3.Different core diameter can be choose,like 38mm,50mm,76mm etc.
4.76mm size product rolls adopts air shaft to rewind,38/50mm size product rolls adopt plain shaft to rewind.

Technical Data:

Name:New Model 2 Shaft PE Stretch Film Rewinder Slitter

Model:PPD-NSFR600

Jumbo roll width:600m

Jumbo roll weight:max50kg

Jumbo roll  core ID:76mm

Rewind roll width:25 to 600mm

Rewind roll core ID:38/50/76mm

Rewind roll OD:max180mm

Speed:0- 650rpm/min

Power:1.7kw

Voltage:220/380/415V option

Air supply:0.2Mpa

NOTE:Any specifications can be customized.
