Stretch Film Rewinding Machine

Protective Plastic Masking Film Rewinder

Protective Plastic Masking Film Rewinder

PPD-PPMFR150

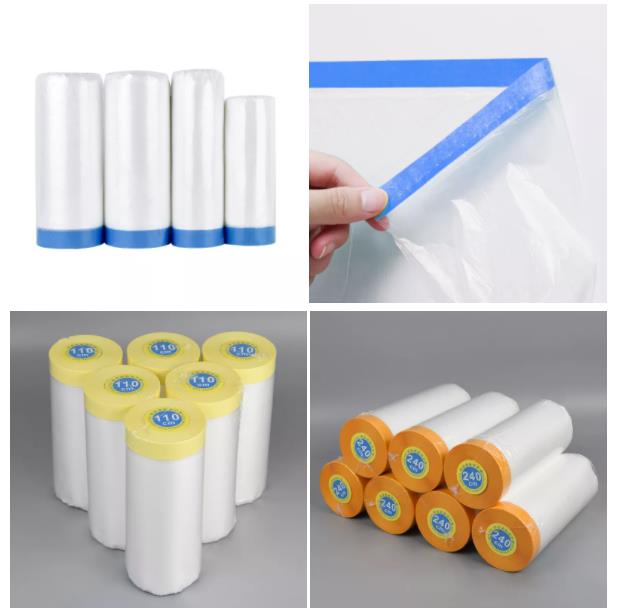

Protective plastic masking film rewinder is ideal for rewinding of protective plastic masking film,protective automotive car cover film,plastic stretch shrink decorative masking film,pre-taped masking film, plastic film, cutting the edge, and stick the edge with the masking tape, washing tape or cloth tape, rewinding to the required meters and automatic cut off.
Machine adopts touch screen PLC fully automatic frequency conversion speed regulation, which is convenient for speed regulation.

Features:
1.Automatically tension control.
2.Both unwinding and rewinding are controlled by magnetic powder tension.
3.Unwinding is fully automatic deviation correction.
4.Two segment length calculation is used for accurate length calculation.

Technical Data:

Name:Protective Plastic Masking Film Rewinder

Model:PPD-PPMFR150

Unwinding roll width:max150mm

Unwinding roll ID:76mm

Unwiding roll OD:max700mm

Rewinding roll width:max150mm

Rewinding roll ID:25-50mm option

Speed:max300m/min

Voltage:220/380/415V option
